1.27 Pitch 90 Degrees Bend Pcb Power Connector 1AMP 20mΩ Max 500V AC/DC

Name: 127 Pitch 90 Degrees Bend Pcb Power Connector 1AMP 20mΩ Max 500V ACDC
Brand: WCON
Price: 1 USD

Quality 1.27 Pitch 90 Degrees Bend Pcb Power Connector 1AMP 20mΩ Max 500V AC/DC for sale

Brand Name : WCON

Model Number : 3131-XXRG0BK00T1

Certification : UL/CUL/SGS/ROHS

Place of Origin : China

MOQ : 1000pcs

Price : Negotiation

Payment Terms : T/T

Supply Ability : 800000kpcs

Delivery Time : 15-25Day

Packaging Details : Tube Reel

Current Rating : 1AMP

Contact Resistance : 20mΩ Max

Withstand Voltage : 500V AC/DC

Insulation Resistance : 1000mΩ Min

Contact Now

Box Header Connector 1.27Pitch 90 degrees bend pcb power connectors

Operation Temperature	﹣40℃ to +105℃
Contact Material	Brass
Contact Plating	Au Or Sn over Ni
Insulator Material	PA9T +30％GF( UL94V-0 ) 6 To 8 Pin No "D" Configuration and CAP

Product name: Ejector

1. Product features: high temperature resistant to high voltage electrical conductivity

2. Product material: PA9T/LCP/PBT, plating surface treatment: gold-plated or tin plating

3. Scope of application: Mainly suitable for data communication and electronic equipment and welding on the PCB board, connected to the corresponding specification of IDC ribbon cable and the other circuit designers need to circuit. And if current usually transmission control signal

1.27 Pitch 90 Degrees Bend Pcb Power Connector 1AMP 20mΩ Max 500V AC/DC

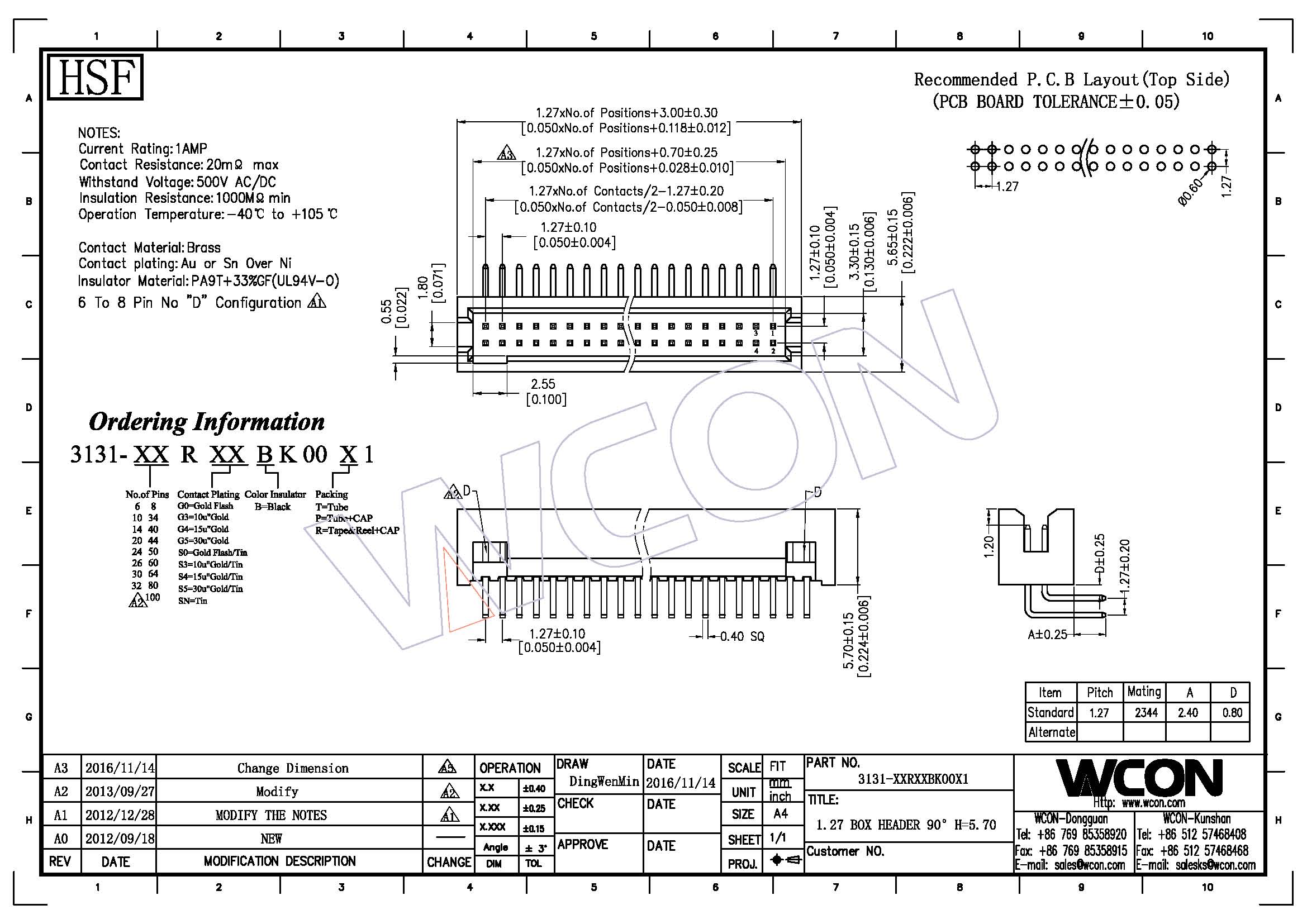

Drawing:Box Header 3131-XXRXXBK00X1(H=5.7).pdf

Product Tags:

board to wire connectors

male header connector

1.27 Pitch 90 Degrees Bend Pcb Power Connector 1AMP 20mΩ Max 500V AC/DC Images
